Air jet looms and water jet looms engineered for weaving mills that need stable production, clear configuration support, and responsive export communication.
Product Lines
JETMECH keeps the product structure focused, helping buyers compare machine type, fabric application, configuration requirements, and quotation details quickly.

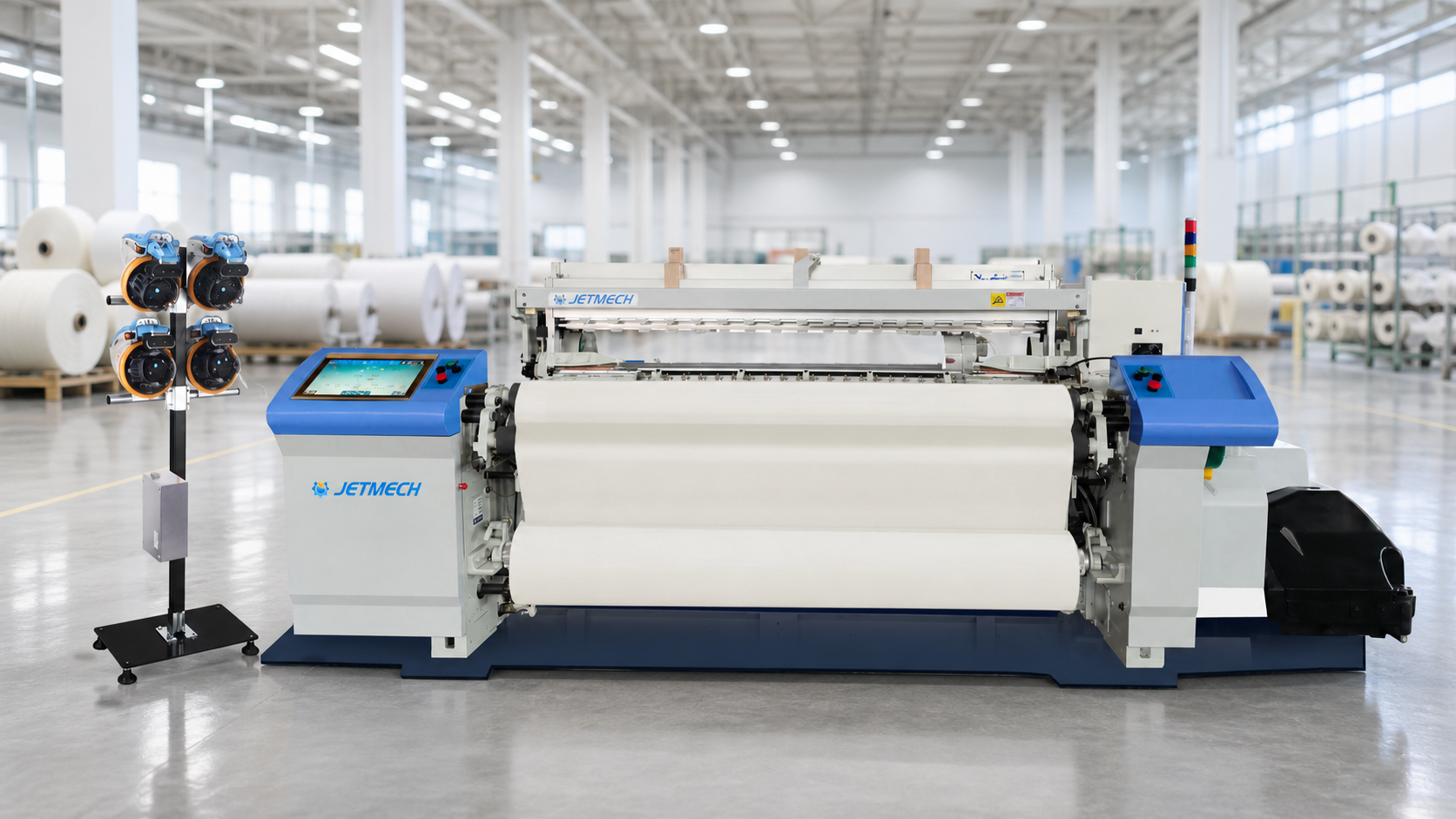

Air Jet Loom
A practical air jet weaving solution for buyers who need production speed, stable operation, and clear technical communication before placing an order.
Water Jet Loom
A water jet loom range for synthetic filament fabric production, built for customers who need clear model positioning and project-based quotation support.
Air Jet Loom Specifications
Recommended configuration for stable high-speed air-jet loom operation. Custom configurations are available, but this setup is recommended when speed and stability are the priority.
Fast comparison points for the selected MG9200 air jet loom configuration.
E-dobby can be configured by order
Maximum configuration: 8N/8F
Servo direct-drive motor
The patented beating shaft is presented separately because it directly affects fabric density, vibration, and long-term machine stability.
Patented System
The beating shaft is one of the most important systems in an air jet loom. It determines beat-up force, weft density uniformity, vibration level, and long-term weaving stability. JETMECH MG9200 uses a patented integrated beating shaft design for quiet, stable, and high-speed performance.
Designed for powerful, uniform beat-up force across the full fabric width.
The beating shaft transfers impact force across the full reed width during every weaving cycle. A balanced integrated structure helps maintain fabric density consistency while reducing vibration during high-speed production.
Integrated shaft body helps resist bending and torsional deformation.
Uniform beat-up force helps reduce uneven density and visible weft bars.
Lower vibration supports stable high-speed operation.
Reduced bearing and gear wear helps lower maintenance requirements.
Core mechanical, electrical, air-system, and weaving-part specifications for order discussion.
Integrated heavy body, 570 kg. Body height: 88 cm. Four floor anchor points per side, eight total.
Patented coaxial central dynamic balance beating shaft system for low noise, stable high-speed operation, and consistent beat-up force.
8 pcs brand-new lightweight frames, Japanese brand.
2 pcs, made in China.
Positive let-off system, servo-motor driven.
Servo-motor driven.
15-inch English HMI with intelligent interactive electrical control system.
Mechanical cutter.
Direct-mounted to the main nozzle for faster air response; original Japanese SMC valve.
One solenoid valve controls two relay nozzles; original Japanese SMC valve.
Wear-resistant DLC-coated nozzles with more than twice the service life of standard nozzles.
Premium Japanese SMC regulators for precise, energy-efficient air pressure control.
2 sets, diameter 800 mm; disc weight: 32 kg.
2 sets, aluminum.
1 pc profile reed.
10,000 pcs stainless steel open-type dropper wires; 10,000 pcs stainless steel heddle wires, 280 mm.
Key components and after-sales support points that buyers should review before confirming a quotation.
Water Jet Loom Specifications

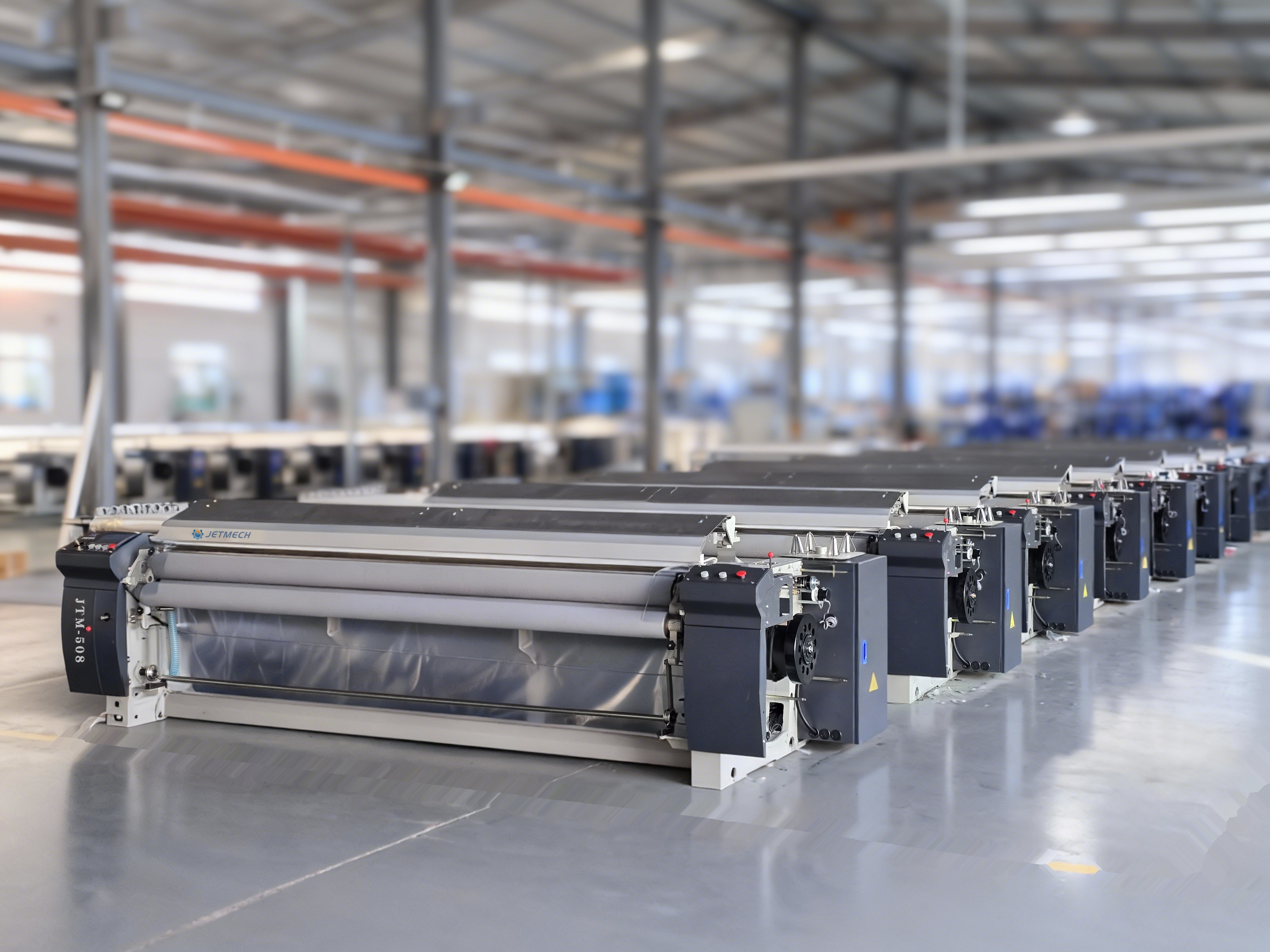

JTM-508 is a stable water-jet weaving machine for synthetic fabrics, with configurable reed width, nozzle quantity, shedding system, let-off, take-up, motor type, and color.
Start with the full machine views, then review the mechanical and electrical configuration details used for JTM-508 evaluation.
JTM-508 Machine View Details
Click any main machine photo to inspect the full-size image. These views help buyers understand appearance, installation space, frame structure, and service access before checking the specification table.

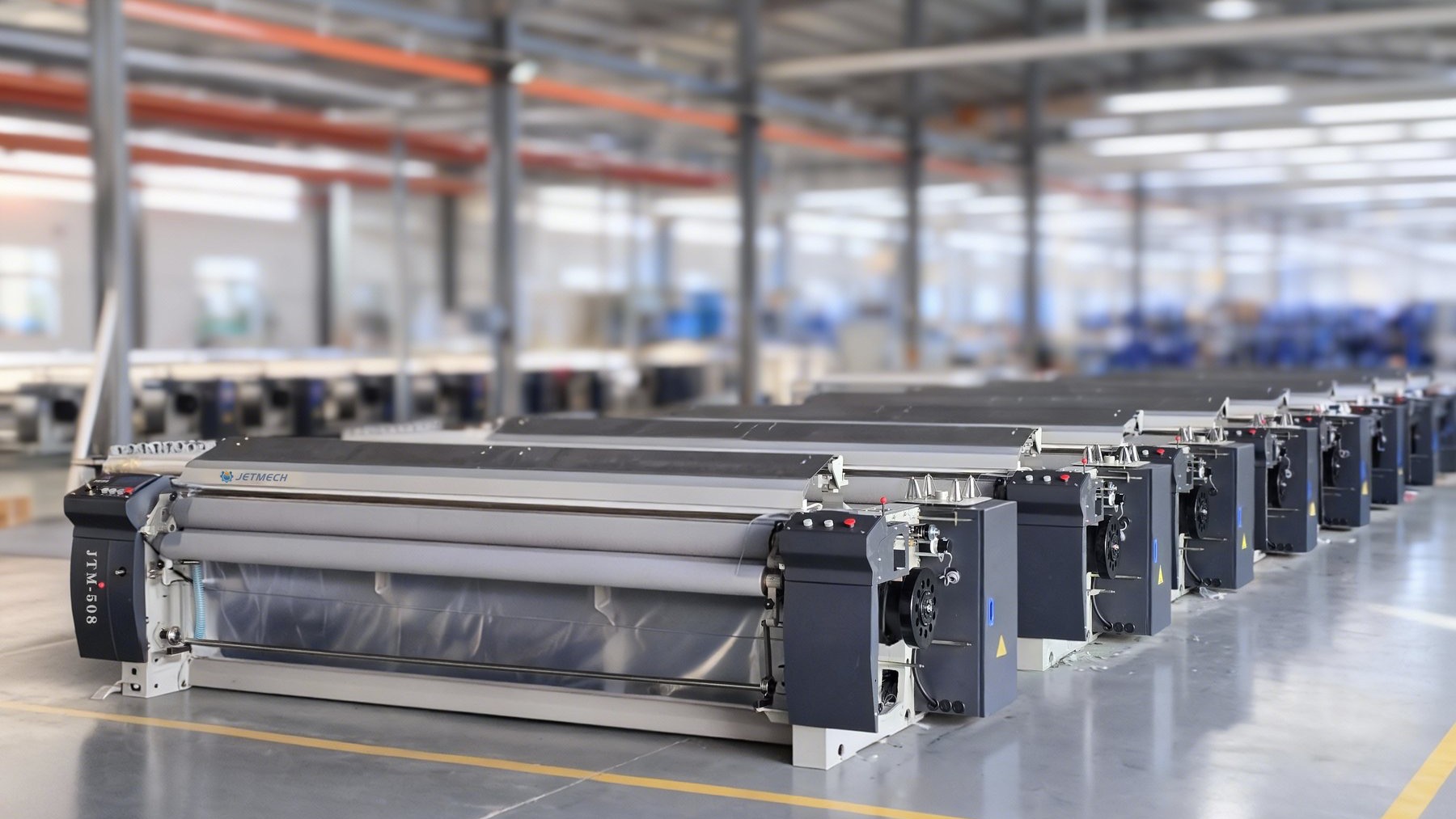

Complete front layout showing the machine body, yarn feeder position, cloth area, protective covers, and overall workshop presentation.

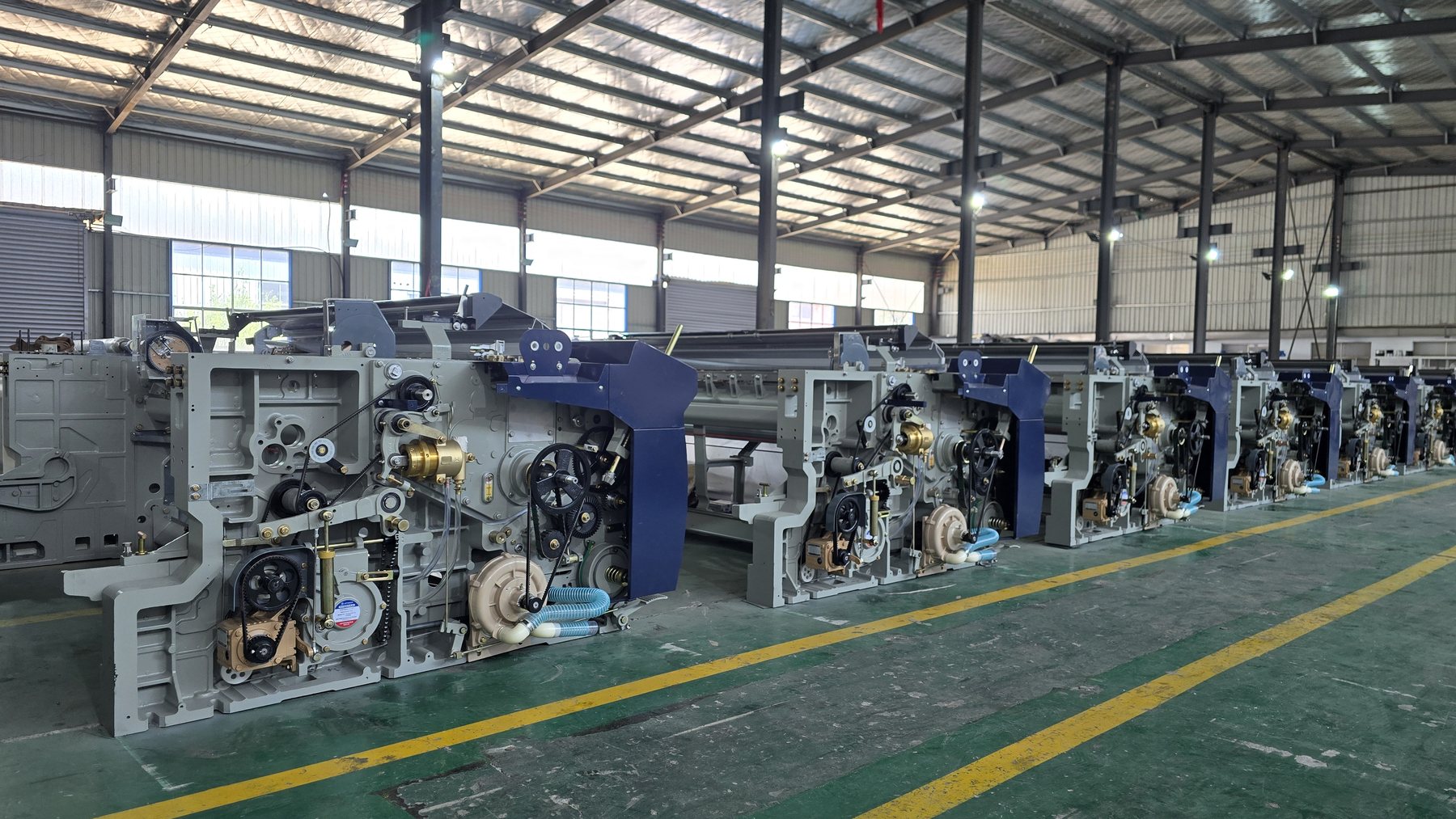

Side angle for checking machine depth, transmission-side access, frame alignment, and installation clearance in the weaving workshop.

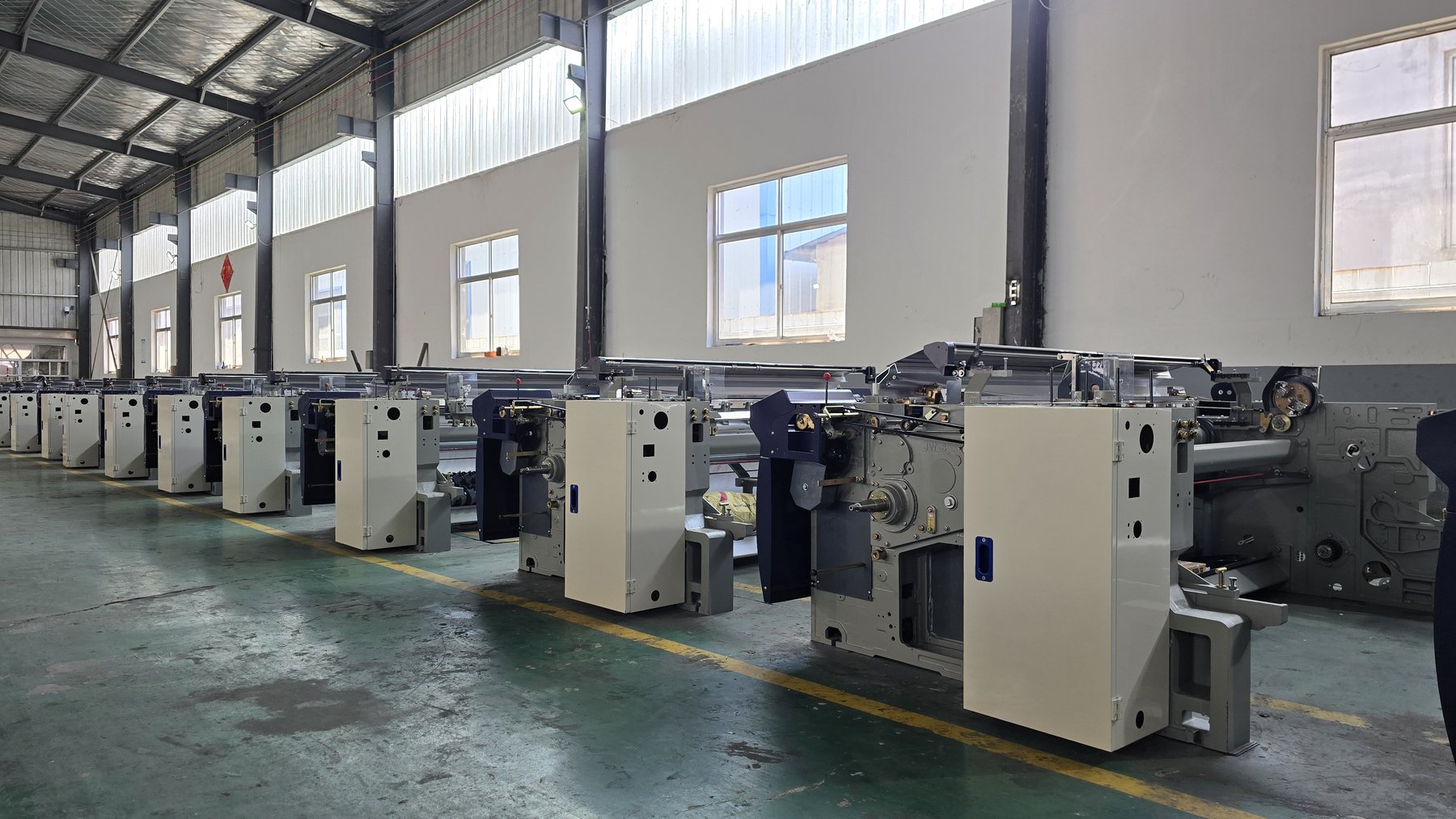

Control-side view highlighting the electrical cabinet position, side-frame structure, wiring area, and service access for operation.

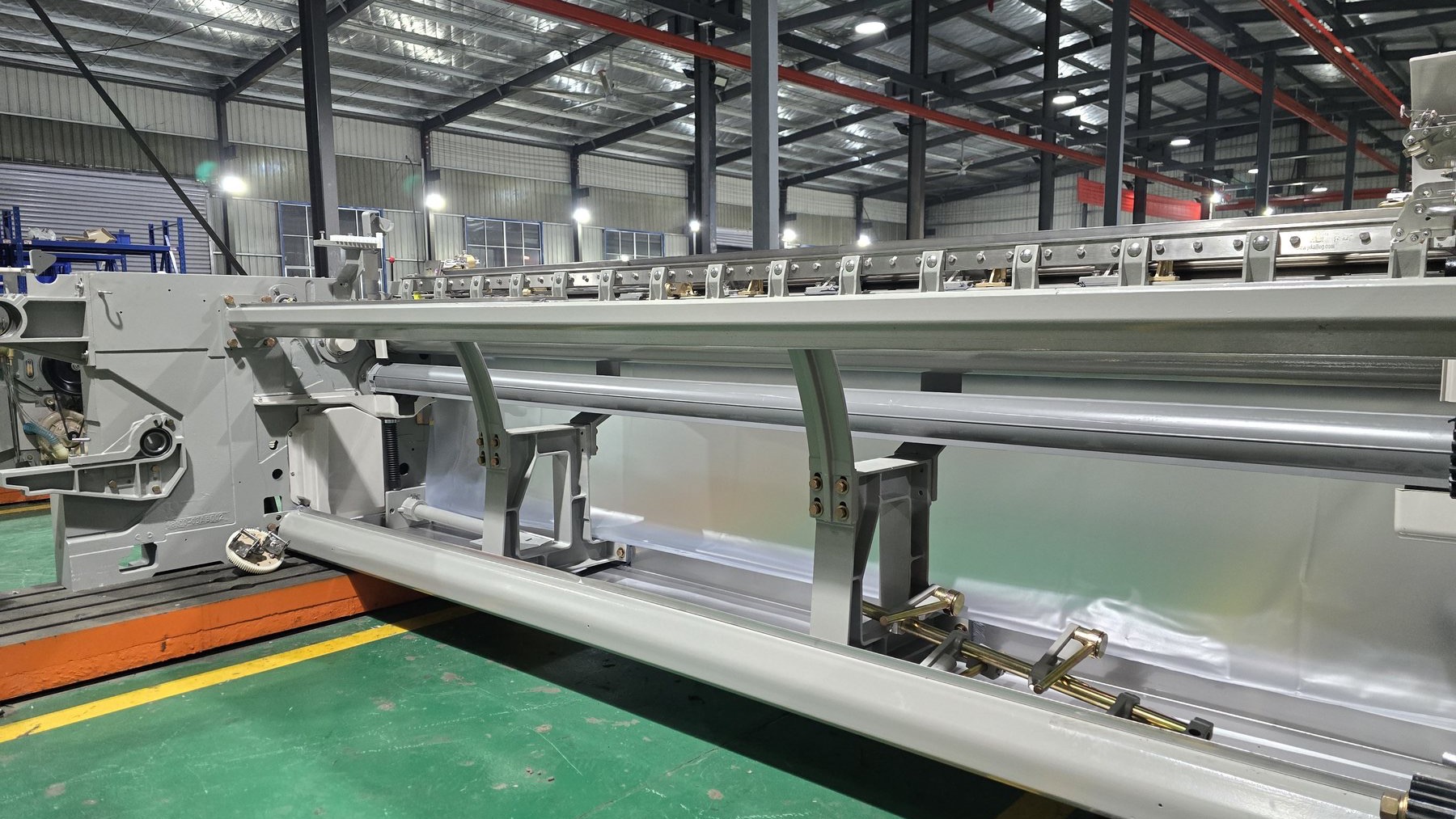

Rear structure view for inspecting the beam layout, support points, fabric path area, and stable frame design for high-speed weaving.
Premium Component Configuration

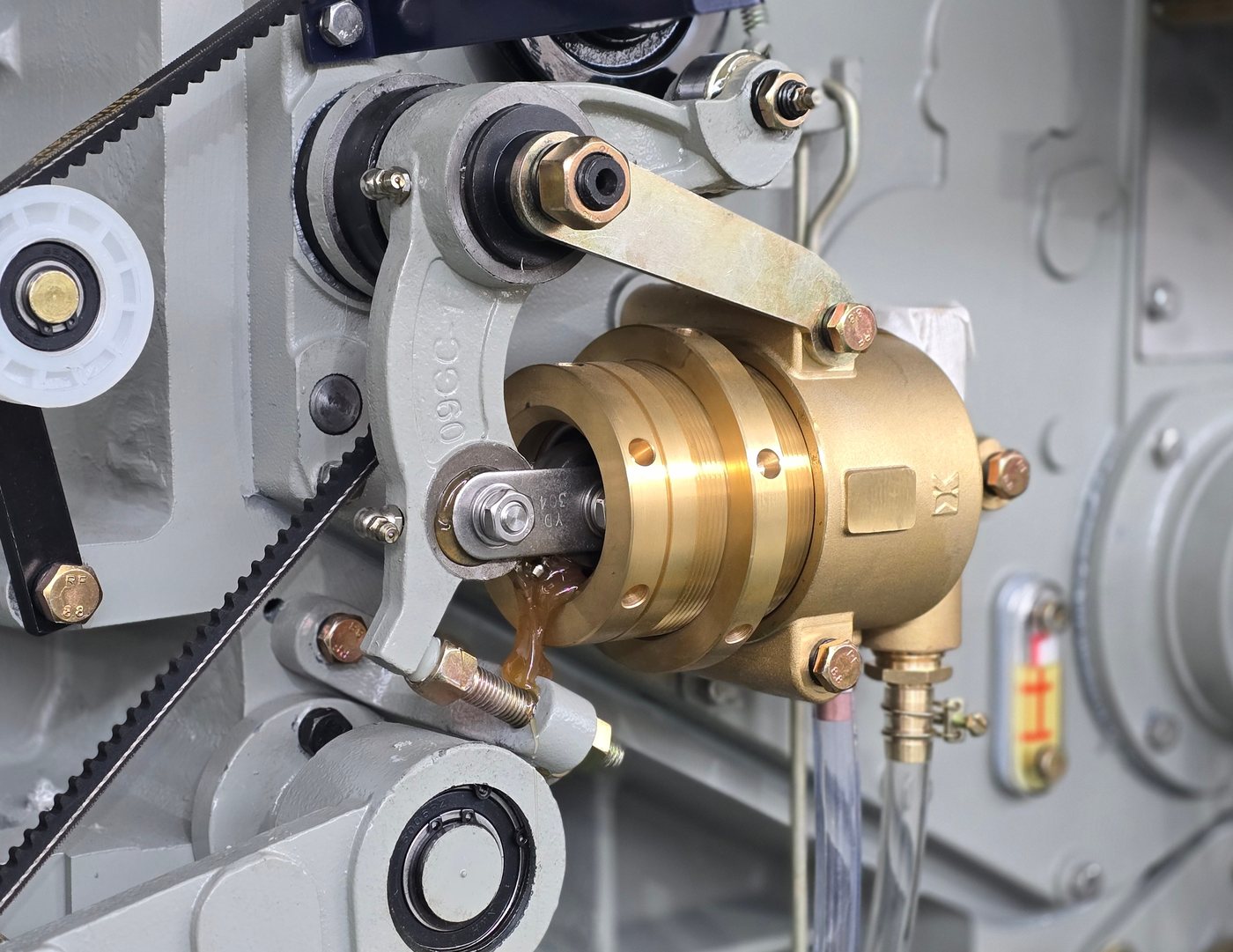

Premium copper components reduce friction and wear during continuous operation.
Smooth movement, low noise, and stable high-speed performance for consistent selvage formation.

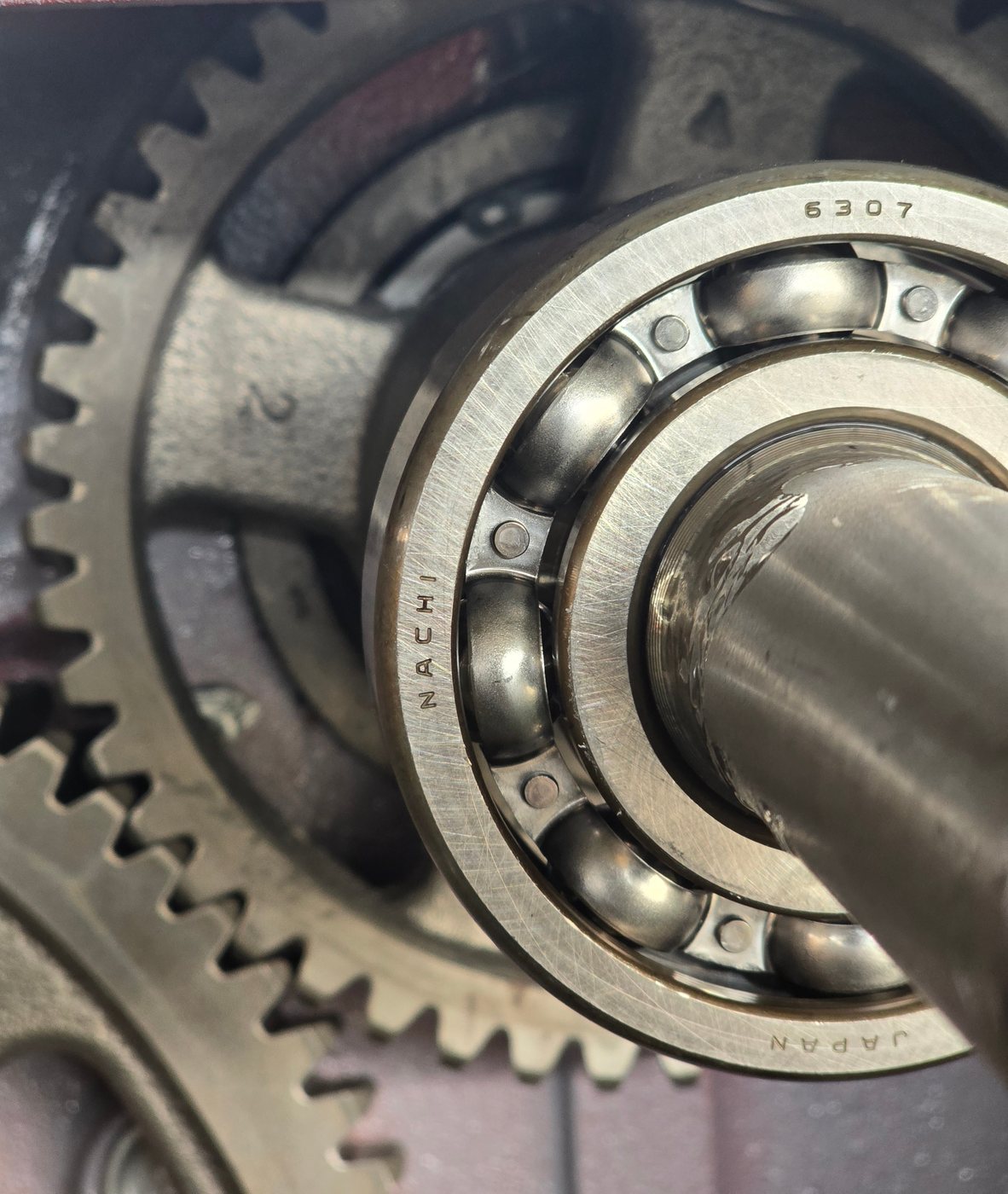

Original Japanese bearings support reliable rotation, reduced wear, and stable long-term operation.

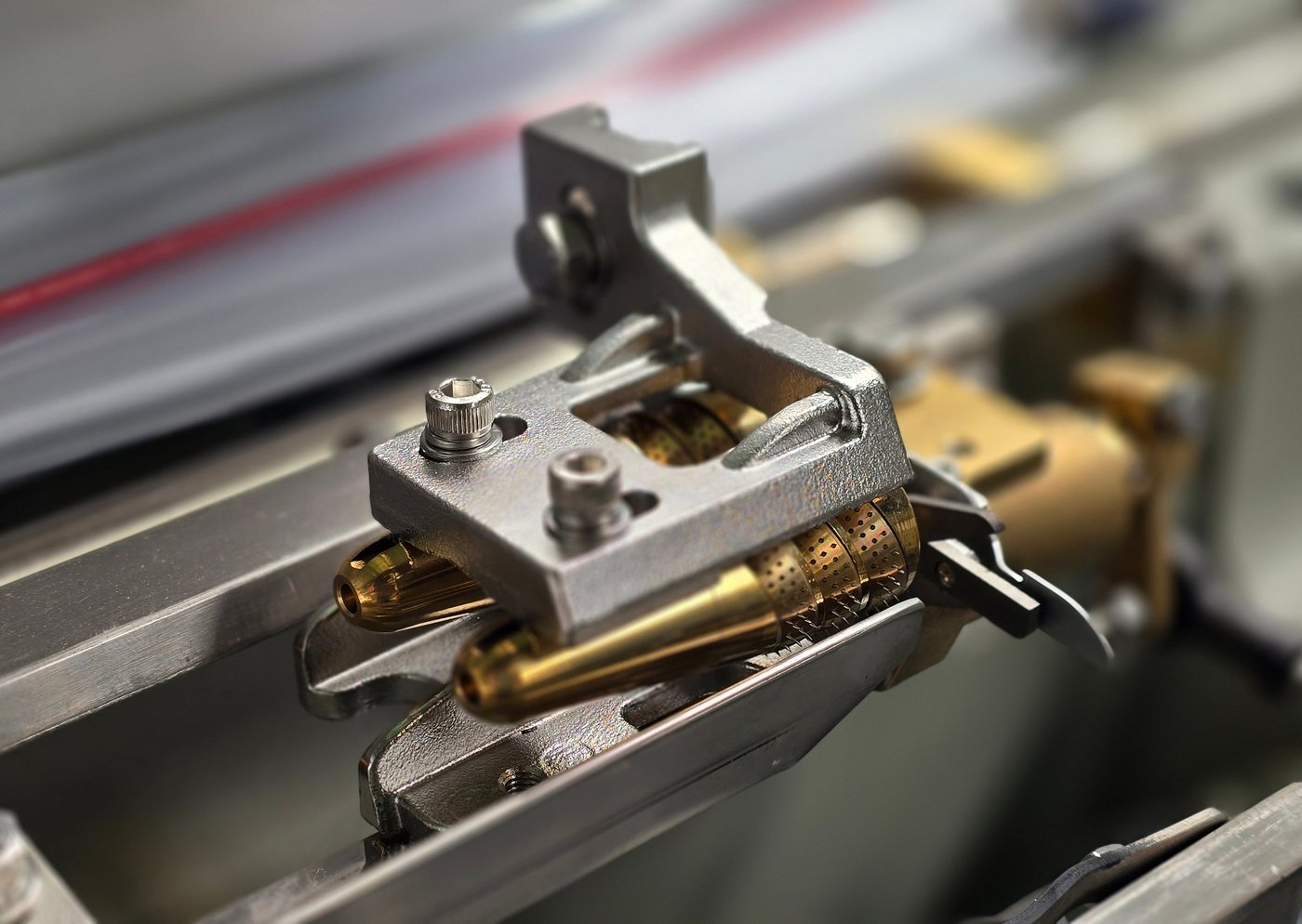

Two 3-ring supports and six teeth stabilize fabric guiding and support smooth fabric output.

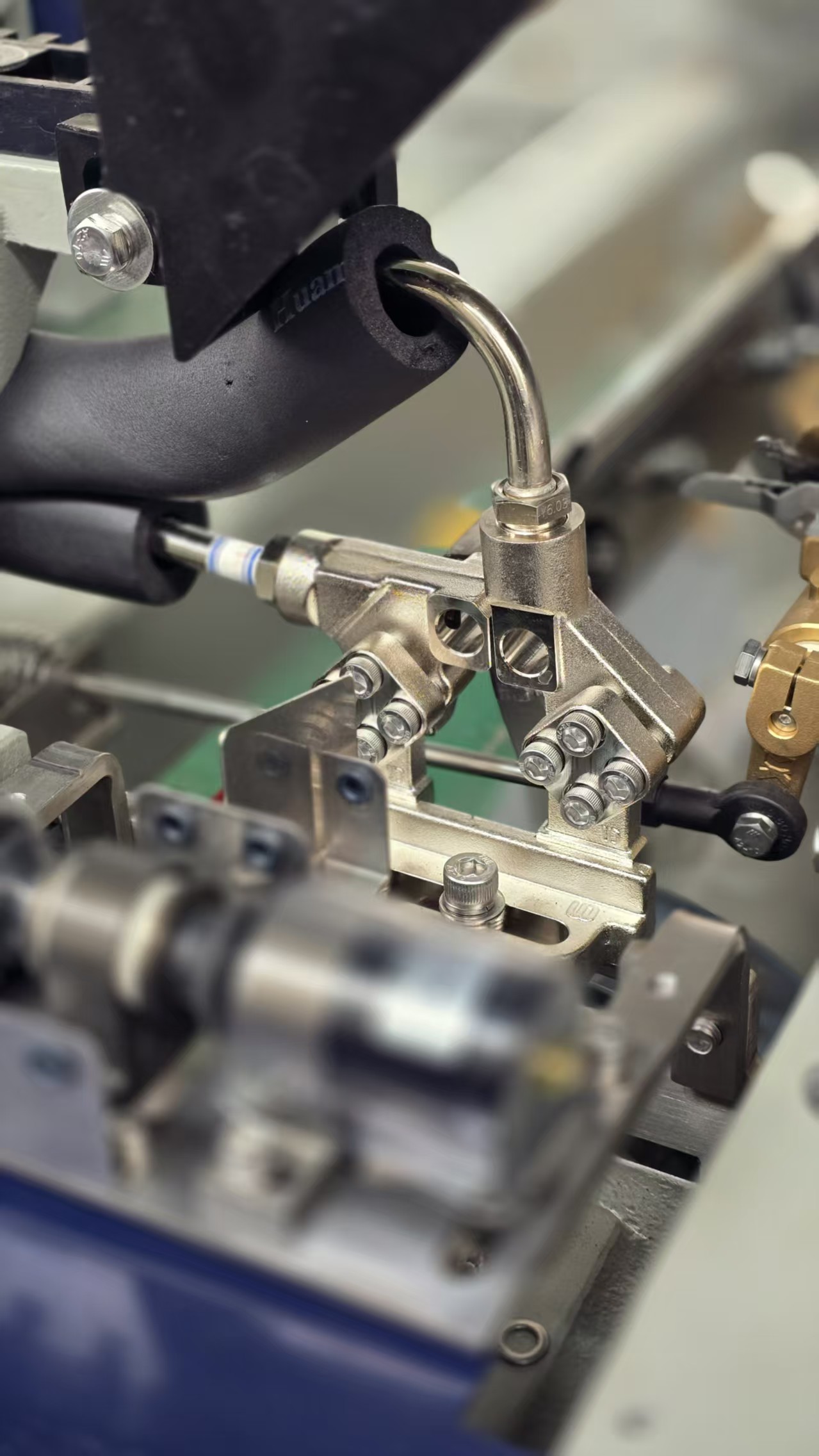

High-precision CNC-machined water guide system works with ceramic nozzles to keep water-jet velocity stable and improve water-flow accuracy.

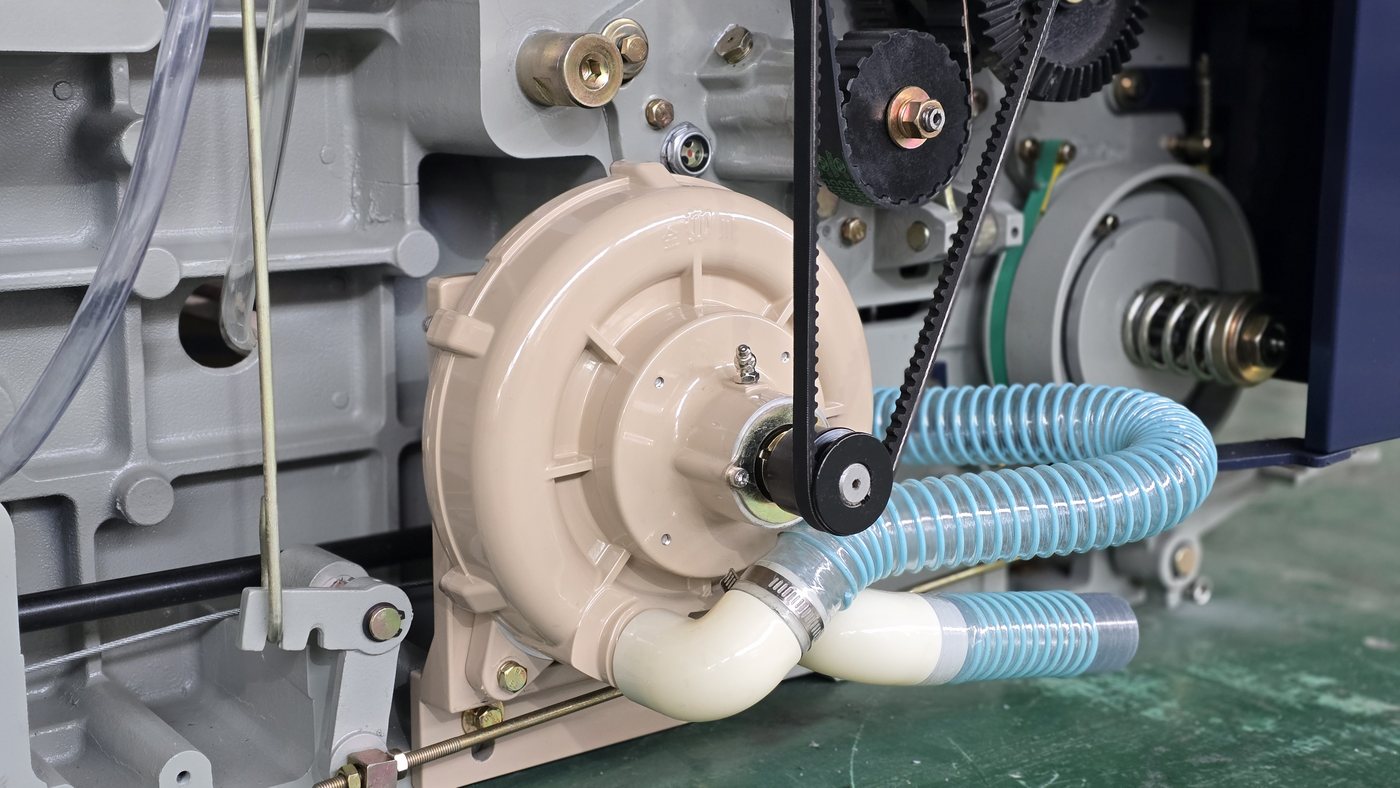

Aluminum blower housing offers higher strength and durability than plastic alternatives.
Control & Drive Configuration

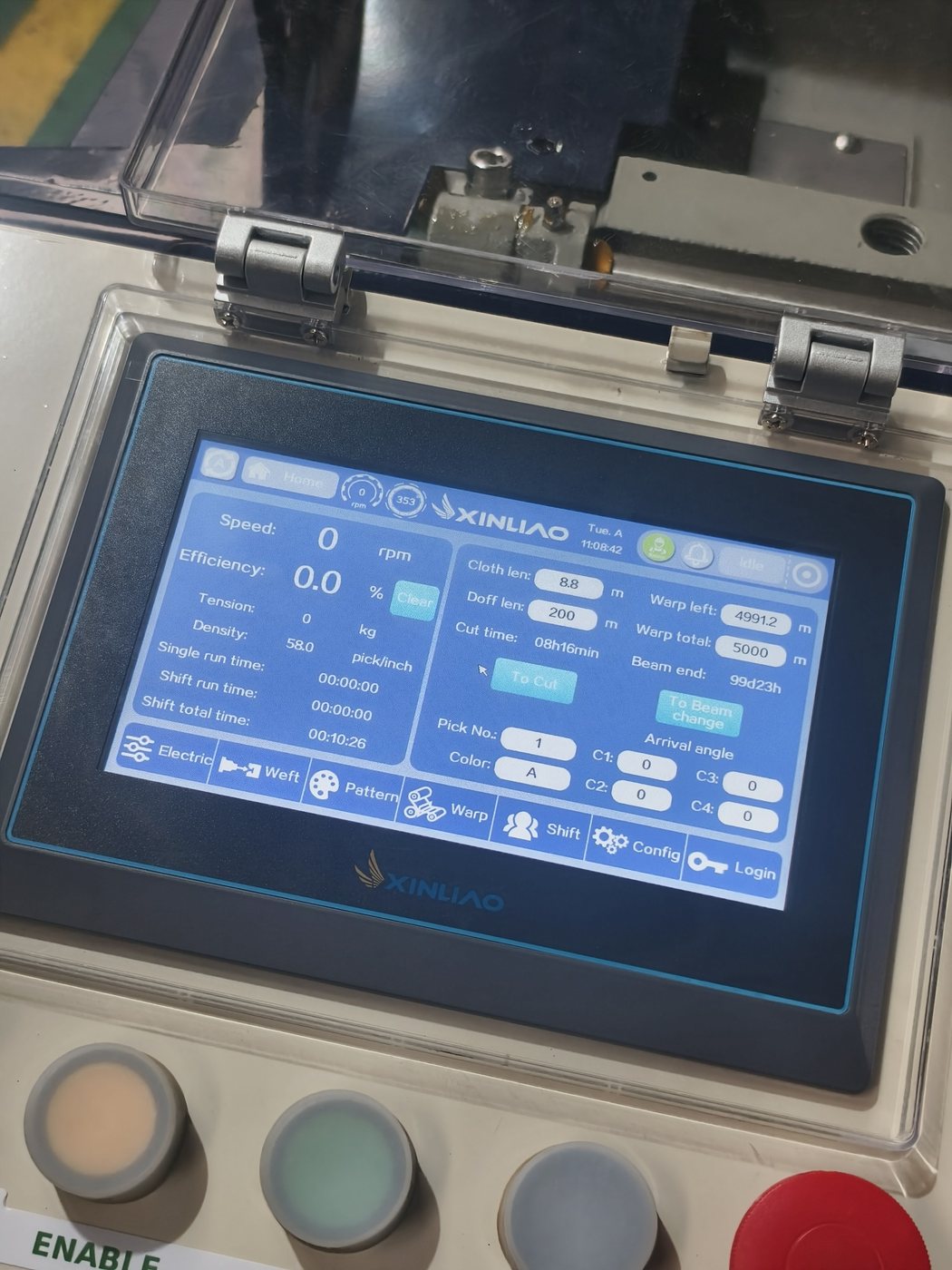

Full English HMI displays machine status, speed, production data, alarms, and key settings.

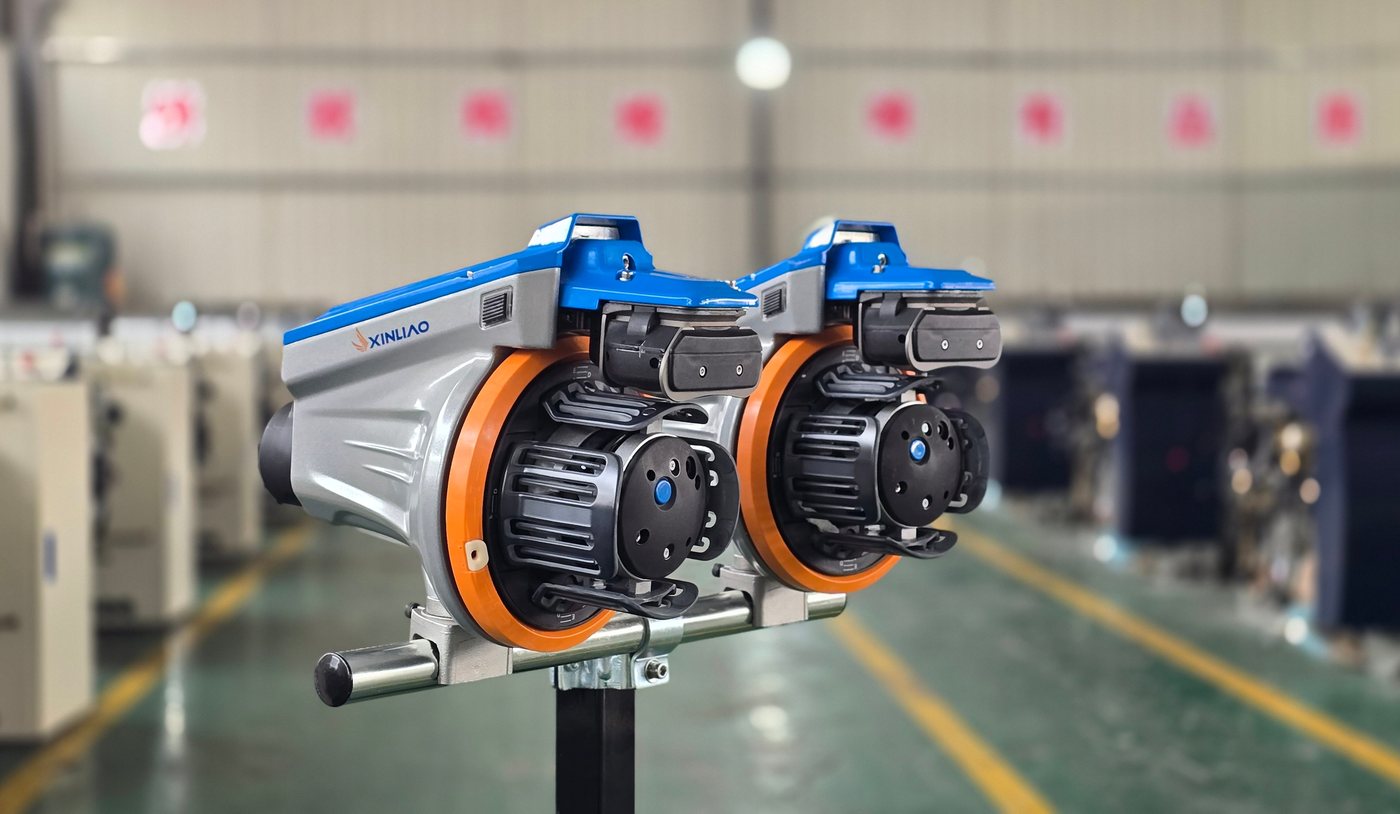

Stable weft storage and feeding control help maintain uniform weft tension and fabric quality.

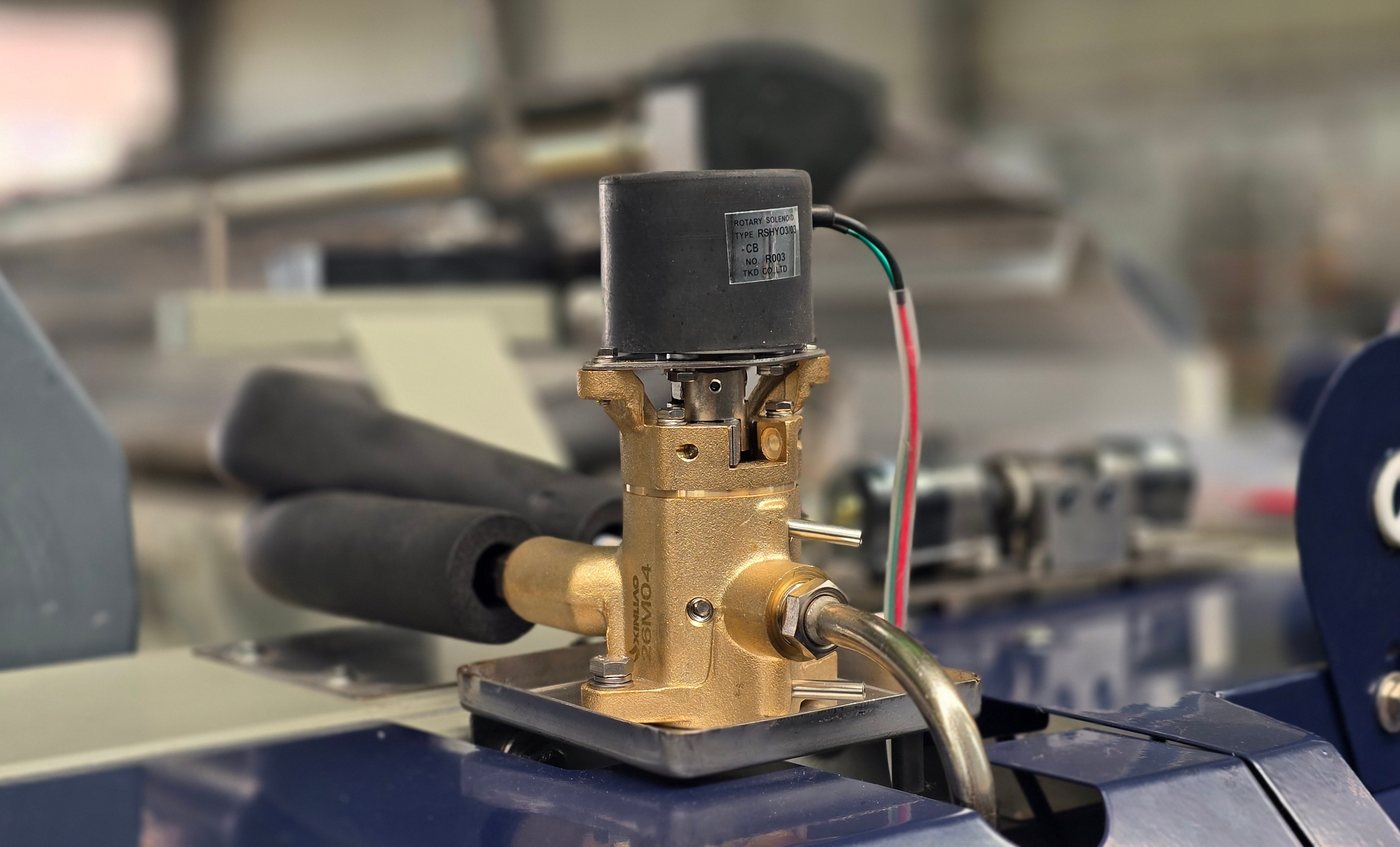

Fast response and accurate action improve water-jet insertion stability during high-speed operation.

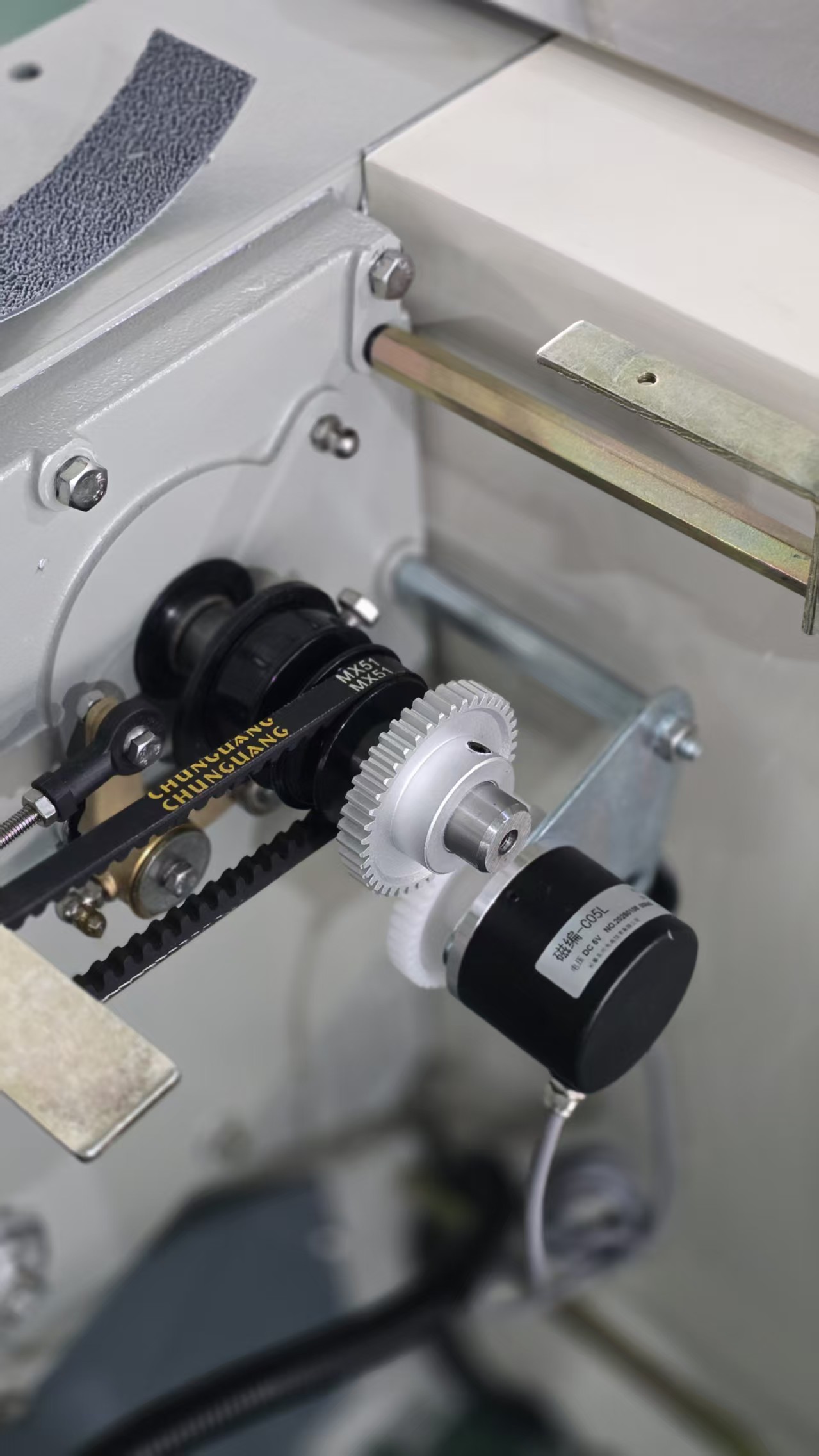

High-sensitivity angle sensing helps the control system read movement position accurately, improving timing feedback, operating stability, and adjustment precision.

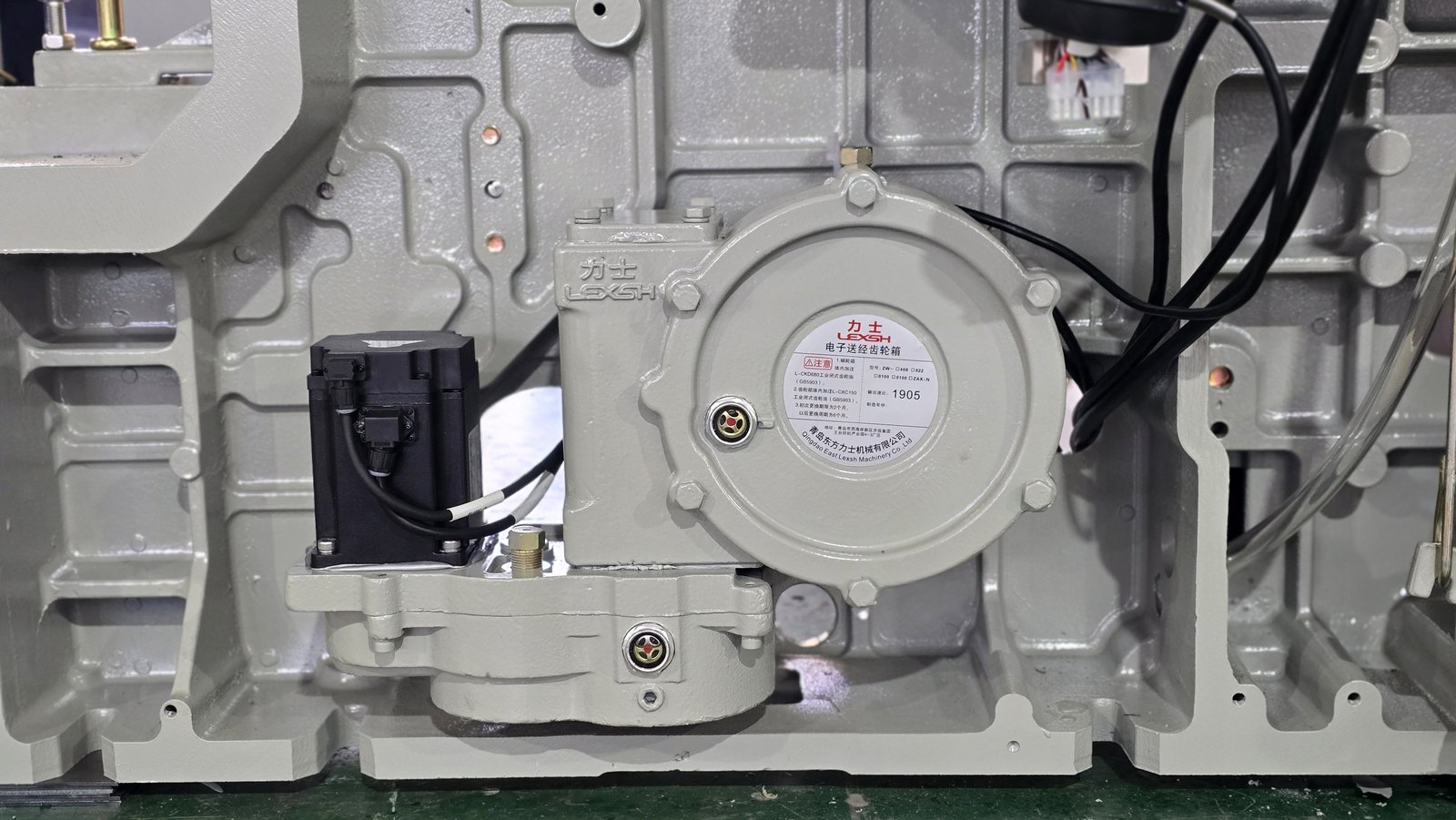

Electronic let-off stabilizes warp tension, while electronic take-up controls weft density and take-up speed.

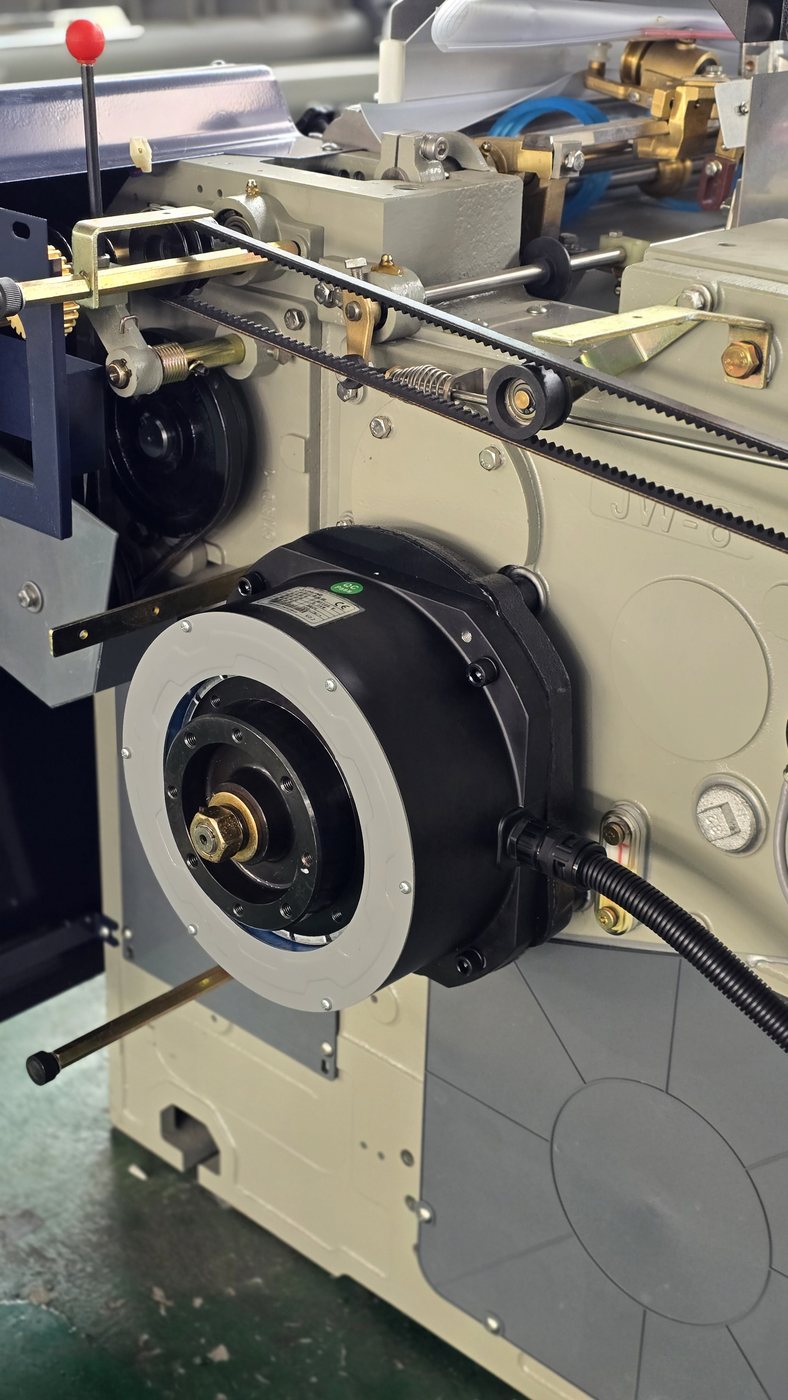

Strong torque and stable power output help reduce energy loss, noise, and maintenance work.
Core options customers usually confirm first before final model selection and quotation.
190 / 210 / 230 / 260 / 280 / 340 cm
Also available: 2P/2N
E-dobby can be configured by order
Servo motor or AC motor
Organized by machine structure, insertion system, motion system, control, and long-term protection.
JTM-508 water jet loom for synthetic filament fabric weaving.
Heavy-duty integrated side frame, 88 cm body height, 570 kg side frame, QT250 casting standard.
Eight anchor bolts total, four per side wall, to improve high-speed operating stability.
1 pump / 2 nozzles or 2 pumps / 2 nozzles, selected by fabric and order requirement.
Crank shedding with 4/6 heald frames, or top-mounted positive cam with NPW and LP lever options.
Left and right beating-shaft gears operate in an oil-bath lubrication system.
Plunger spring-pressure pump with stainless steel or ceramic nozzles and stainless welded reed.
Electronic or mechanical weft feeder.
Mechanical or electronic negative let-off with 800 mm flange.
Mechanical or electronic take-up with 600 mm cloth roller.
Split-tube suction mechanism for removing water during continuous weaving.

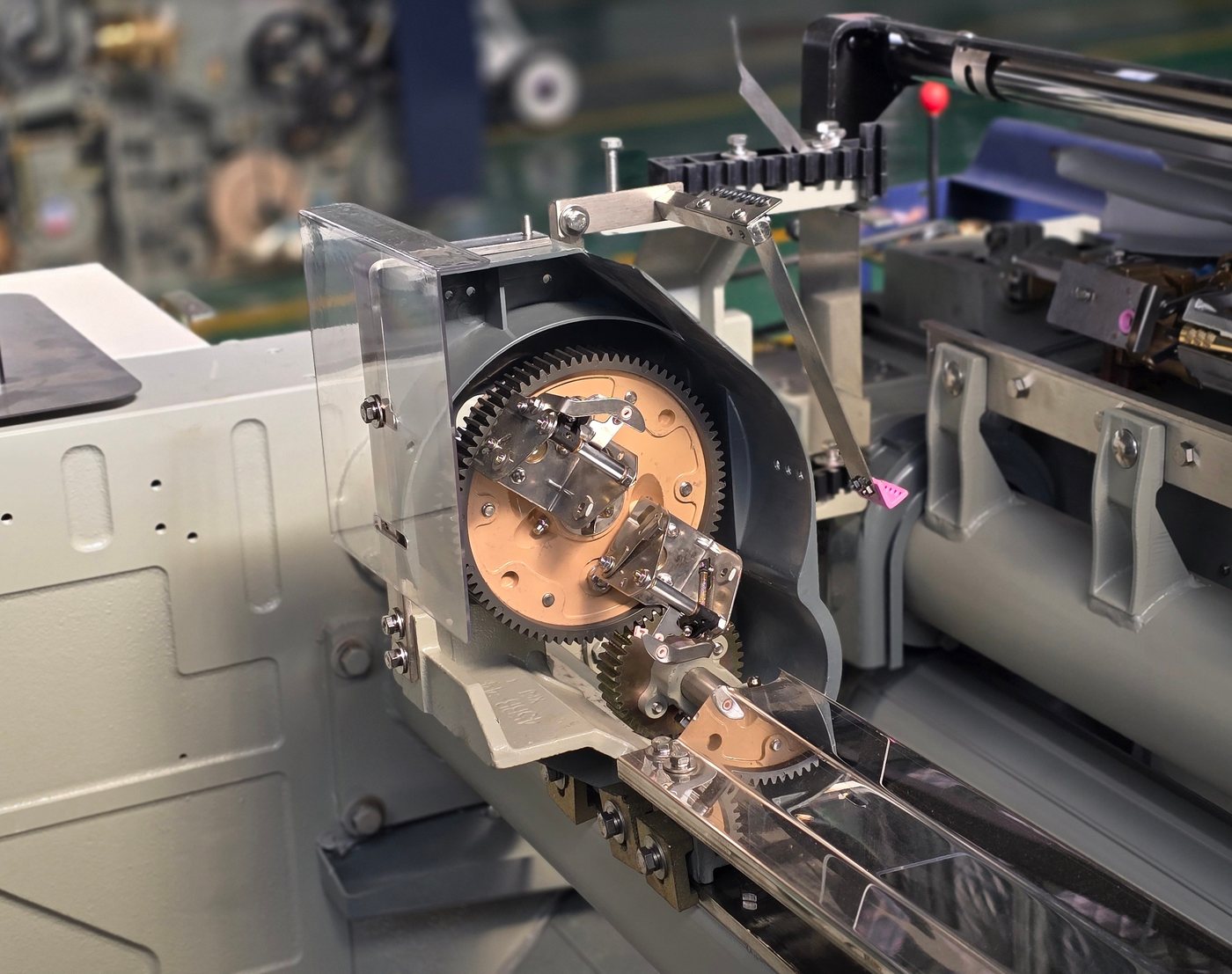

Planetary gear twisting system for smooth selvage formation and stable high-speed running.
Spindle twisting system for reliable edge handling.
Mechanical alloy cutter for durable fabric-edge cutting.
5.5 kW servo motor or AC motor, selected according to project configuration.
Original Japanese NSK / NACHI main body bearings.
Full English HMI and intelligent operation system for clear parameter setting and easier daily use.
Stainless steel screws, zinc-rich anti-rust coating, primer, and two surface paint layers; premium coating options are available.
Brand references and quotation details to confirm before final order discussion.
Please confirm reed width, shedding system, nozzle quantity, let-off and take-up system, motor type, and machine color.
Capabilities
Textile machinery buyers need more than a picture. JETMECH supports the discussion from fabric application to machine configuration and export quotation.
Separate air jet and water jet loom options by raw material, fabric type, and production target.
Discuss key requirements such as reed width, shedding system, let-off, take-up, and optional devices.
Prepare clear communication for machine model, quantity, packing, delivery time, and payment terms.
Applications
Different fabric categories require different insertion methods, workshop conditions, and configuration priorities. The website can later expand each application into a dedicated product or solution page.
Air Jet Looms | Water Jet Looms
Company
Qingdao JETMECH Machinery Technology Co., Ltd. supplies air jet looms and water jet looms for overseas weaving factories, with practical model selection, configuration support, and export communication.
Air jet loom and water jet loom solutions for main shuttleless weaving projects.
Model, reed width, shedding, let-off, take-up, motor, and optional systems are matched by project.
Quotation, packing, delivery, and after-sales details are prepared for overseas buyers.
Global Support
Share your fabric type, reed width, production target, and preferred configuration. JETMECH will help match the right air jet or water jet loom specification for quotation and export planning.
